VIBmeter – portable vibration analyzer

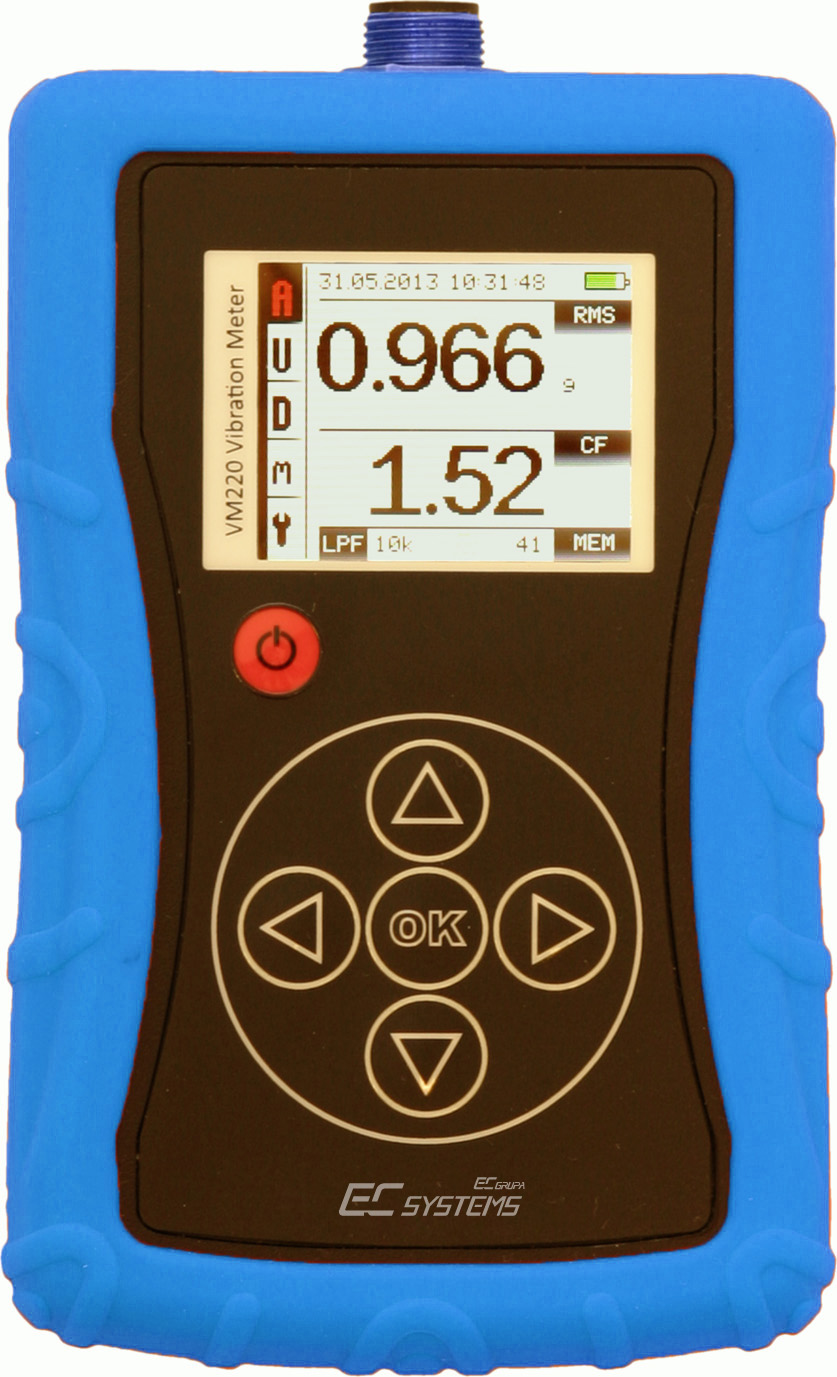

The VIBmeter is a compact, rechargeable, portable device designed to conform to ISO10816-3 and operate with a constant current accelerometer providing an accurate vibration measurement.

Features comprise of the ability to store up to 100 time-stamped readings, including; RMS, peak, peak-peak, crest factor and bearing conditions all on an easy to read vibrant colour LCD display.









Features

  • Rechargeable Lithium-ion battery with worldwide charger
  • Switchable low pass filter
  • User-selectable units
  • High visibility colour LCD display.
  • RMS, peak, peak-peak, crest factor readings in acceleration, velocity or displacement modes
  • Bearing condition modes (acceleration and velocity)
  • 100 memories can store vibration and time/date
  • Industrial rubber case
  • Adaptive amplifier for high accuracy
  • AC output
  • Audio output for listening to vibration directly
  • Supplied with MTN/2200 probe sensor, others available.

Specifications

Measurement ranges
Acceleration 20 g
Velocity 200 mm/s
Displacement 2000 μm
Different ranges available
Modes RMS
Peak
Peak-peak
Crest factor
Bearing acceleration
Bearing velocity
ISO10816-3
8 modes for machine classes I, II, III, IV, rigid/fixed foundations 20 g
Visual indication of machine status Unacceptable
Unsatisfactory
Satisfactory
Good
Frequency range
Low pass filters 1 kHz, 5 kHz, 10 kHz
Band-pass filter 1-10 kHz
Units
Acceleration g, m/sec²
Velocity mm/sec, in/sec
Displacement μm, mils
Display
Type TFT 16 bit colour
Resolution 160 x 128
Viewing angle 100°
Viewable size 35 x 28 mm
Memory
Size 100 slots storing vibration, time, date,
filter, units, crest factor
Connections
Power USB mini-B
Headphones/AC signal 3.5mm stereo
Sensor 4 pin Lumberg
Environmental
Operating temperature 0 to +45°C
Storage temperature -20 to +60°C
Power
Charger 100-240V/5V 1A USB with 4 adaptors
Battery Li-ion 3.7V
Battery life >20 hours
Power status Battery icon indicates charging status, battery level
Dimensions
Size (L x W x H) 130 x 78 x 28mm
Accessories
  VIBmeter
Probe
Magnet
4" ¼"-28UNF Spike
Coiled sensor cable
USB A to mini USB B cable
Worldwide adaptor with 4 adaptors
Carry case
Handbook
