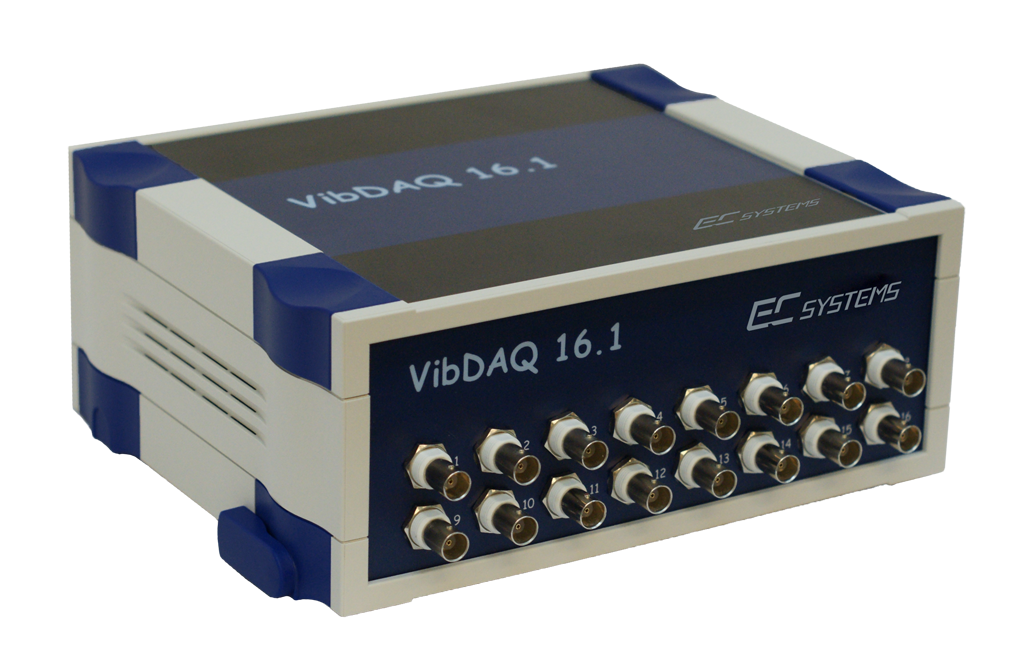

VIBdaq 16.1 - 16-channel data acquisition module

VIBdaq 16.1 is a 16-channel data acquisition system for signal processing in IEPE standard. The data transfer to a PC computer, as well as the system management is carried out through a USB interface.

VIBdaq 16.1 is equipped with LED indicators showing current status of the sensor circuits.

Features:

  • Supports up to 16 IEPE sensors
  • Testing the sensor circuits for open/short circuit
  • Works with DASYLab and LabVIEW software

Key parameters

Number of input channels 16
Input type IEPE/ICP® 2,4 mA 24 V
Resolution 16 bit
Sampling frequency synchronic to 100 kHz
Measuring range ±10V, ±5V, ±2V i ±1V
Crosstalk 0-25 kHz: - 80 dB
Input voltage range
Max relative error
range ± 10 V 6 mV
range ± 5 V 3 mV
range ± 2 V 1,5 mV
range ± 1 V 1 mV
Power 5 V DC from PC computer USB
12 V DC from external source
Communication interface USB 1.1; USB 2.0
Operational temperature 0°C to +70°C
Dimensions 200 x 260 x 110 mm
(L x W x H)
Set includes: module, suitcase, cables, user manual
