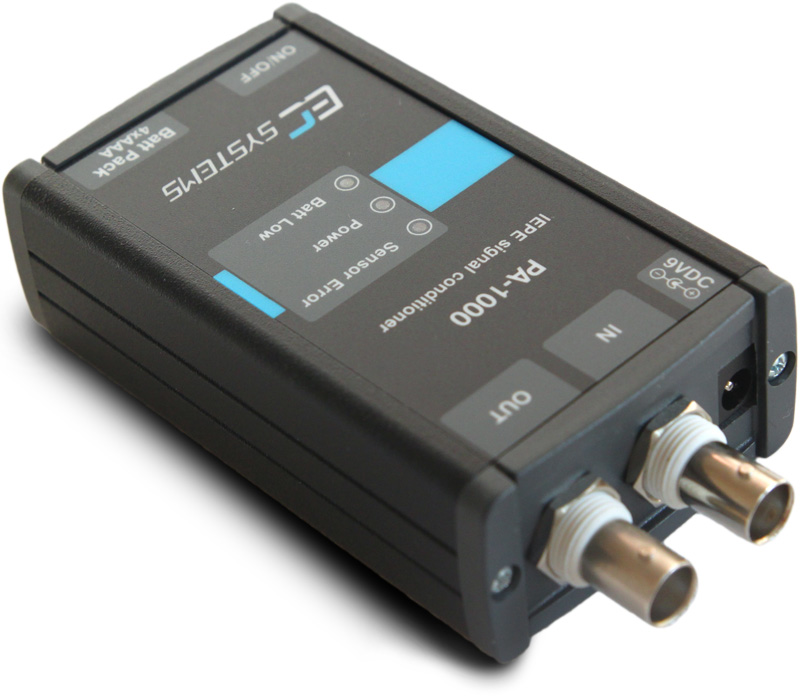

PA 1000 - Single channel conditioner

PA 1000 is a single channel, portable conditioner for ICP® signal with built-in battery pack. The conditioner is equipped with 2.4mA/24V power supply for IEPE (ICP®), and with a special input circuit for gaining optimal transitional performance.

There are tree LED indicators on the control panel, showing as follows:

  • Measurement path shorting and opening
  • Power On/Off
  • Battery Low

The PA 1000 has a durable aluminum housing. The low noise, wide dynamic range and excellent accuracy make this model an excellent choice for demanding measurement applications.

The devices are also available in the DIN rail mountable version.

Technical data

Number of channels (in/out) 1/1
Input type ICP® 2.4 mA/24V
Signaling Open/Short, Battery low, on/off
Input impedance 100 kΩ
Output impedance 100 Ω
Gain x1 (0dB)
Gain error < 0.1 %
Gain drift < 10 ppm/°C
SNR > 90 dB (10 Hz - 22 kHz)
Frequency response 0.2 Hz to 100 kHz
Distortions < 0.05 %
Output voltage range 20 Vpp
Offset error < 10mV at the output (DC –short)
Battery 4xAAA
Power supply 9 VDC
Dimensions 60 x 100 x 30 mm
Weight 225 g
Operational temperature 0°C ...+ 60°C
Storage temperature -10°C ... + 70°C (excluding batteries)
